CHIMEI brand PT650D Weighing Indicator model description and selection

PT650D is suitable for all kinds of application such as hopper and weigh platform. It has three opto-coupler input . kg/lb conversion. Hold/valley hold function. Hysteresis control for Hi/Lo comparator.

Common Options

Optional RS232 or RS485 serial input/output port.
Optional Hi/Lo comparator output.
Optional simple batching software.
Optional BCD board or analog output

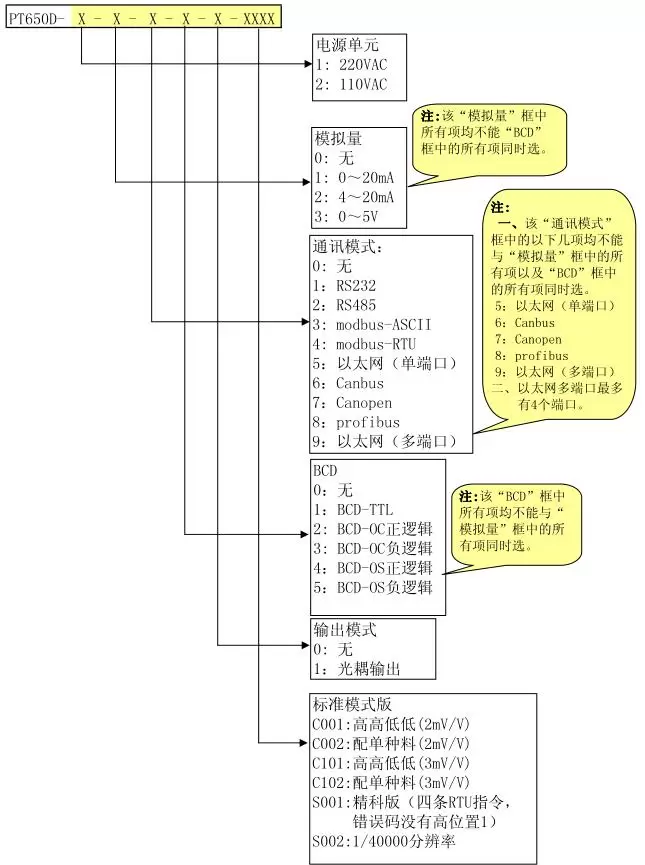

PT650D-X: First number identifier: The power supply unit: 1:220VAC; 2: 110VAC;
PT650D-1-X: Second number identifier: Analog: 0: No; 1: 0-20ma; 2: 4-20ma; 3:0-5v;
PT650D-1-1-X: Third number identifier:Communication mode: 0: No; 1:RS232;2 : RS485; 3: modbus-ASCII; 4: modbus-RTU; 5: Ethernet (single port); 6 : Canbus; 7: Canopen; 8: Profibus;
9: Ethernet (multi port);
PT650D-1-1-1-X: Fourth number identifier: BCD: 0:NO; 1:BCD-TTL; 2: BCD-OC positive logic; 3: BCD-OC Negative logic; 4: BCD-OS positive logic; 5: BCD-OS Negative logic;
PT650D-1-1-1-1-X: Fifth number identifier: Output mode; 0: No, 1: Optocoupler output;
PT650D-1-1-1-1-1-XXXX: The last four numbers:Standard pattern plate:
C001: upper,upper,Low,Low (2mV/V);
C002: Single material(2mV/V);
C101: upper,upper,Low,Low (3mV/V);
C102: Single material(3mV/V);
S001: Four RTU instruction, the error code has no upper 1.
S002: 1:40000 resolution ratio
Please purchase the model code you need.
