3750/2500Twin Shaft Concrete Mixer

Twin shaft concrete mixer is applicable to various commercial concrete mixing plants, and high-speed rail and expressway mixing plants. The main parts including reduction gears, bearing, sealing element and V-belt are imported from Europe, prolong the service life, reduce the failure rate and make the stirring process safer and more reliable.

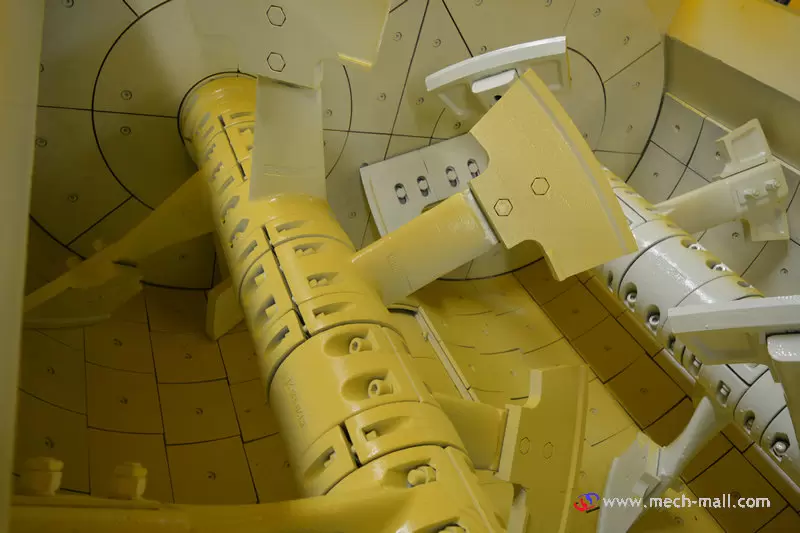

The mixer uses the shovel-shaped agitating vane, and optimized design of vane thickness, the interval between vane and lining plate, the vane curve and layout, and the agitating performance is significantly improved. This series twin shaft horizontal concrete mixer can be used to replace SICOMA MAO/MSO series 1m³ to 6m³ concrete mixer.
High-chromium Alloy Liner

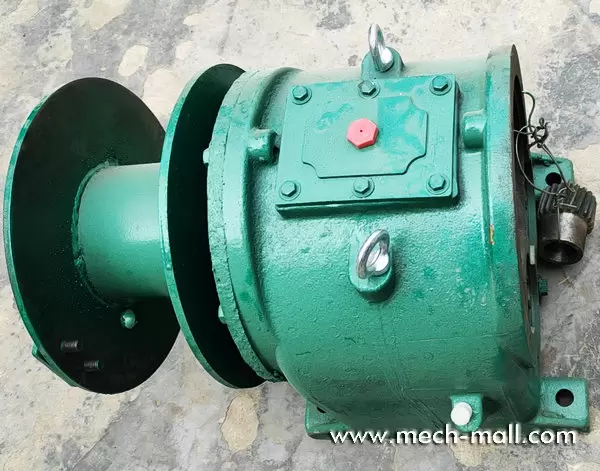

Reducer：Adopting the Italy brand or self brand reducer and parts,reliable performance, long service life, low noise;

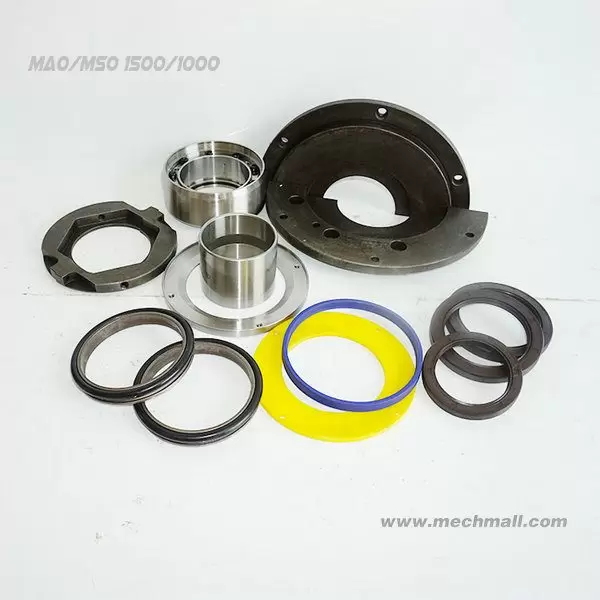

Shaft Seals: Multi-combined sealing by imported components, avoiding the cement and slurry contacting the shaft head, extending the service life of the concrete mixer;
Electric Lubricating Pump: Supplying the grease to four shaft end respectively with using four pump cores. It is no need to use flow divider valve, avoiding blocking of the flow divider valve to decrease the workload of maintenance and service;

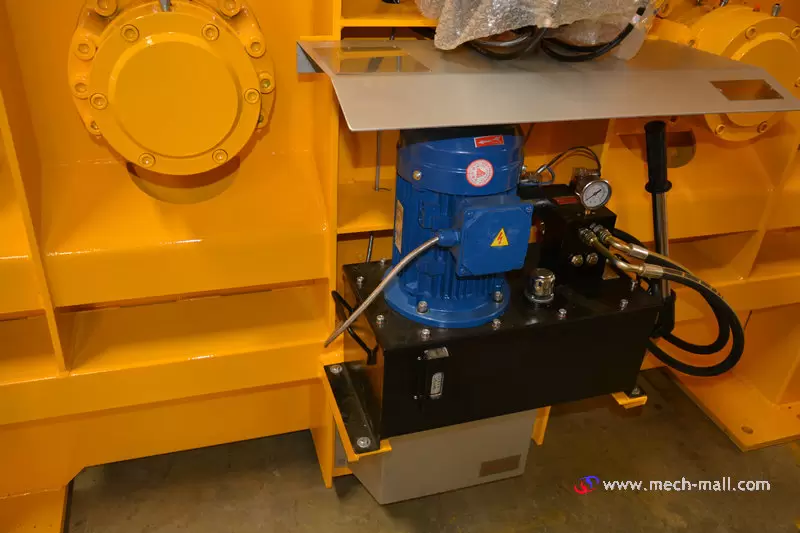

Hydraulic Discharging System: with strong drive force and reliable discharging;Discharging door can be opened at any angle, with manual discharging function; The discharging door adopts detachable structure, convenient for maintenance.

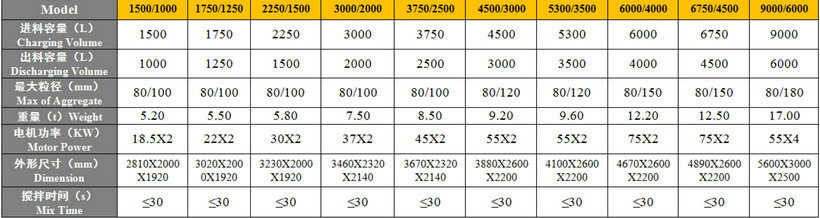

Technical Parameters >>
