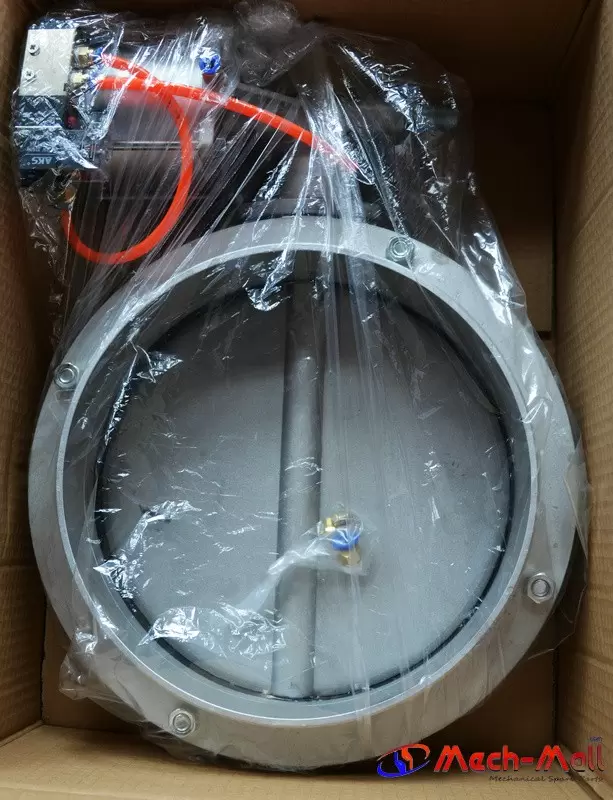

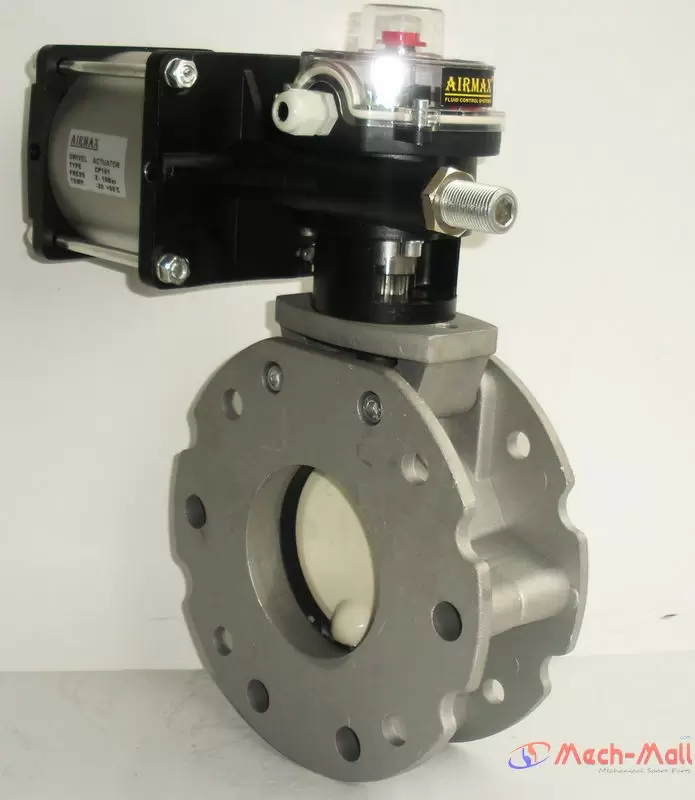

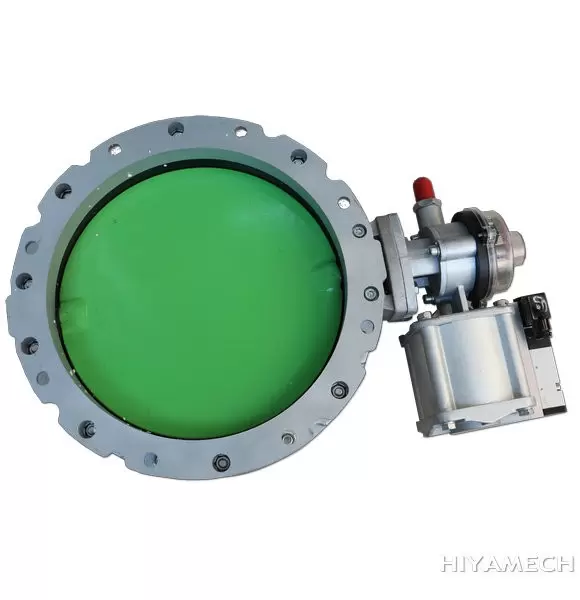

BVF Series Pneumatic Butterfly Valve
The light valve body is made of die-cast aluminum, the disc is made of anti-wear polythene lining with steel plate. The special sealing composed by the disc and the anti-wear rubber ring is so suitable for the applications with powder/particle materials, especially for the abrasive materials.

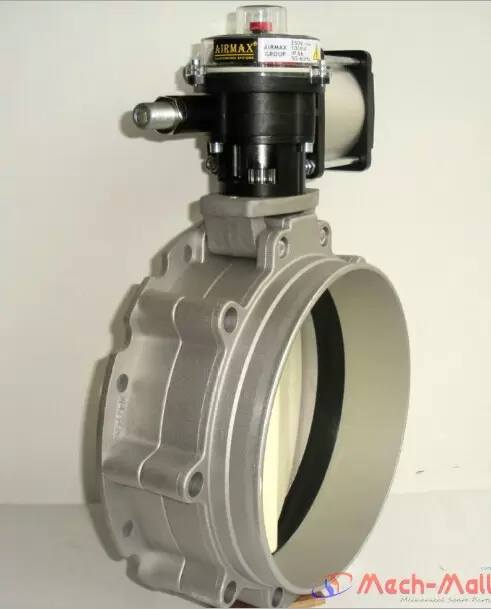

BV1F with identical top and bottom flange and bottom joint sleeve connection
BV2F with identical top and bottom flange
VALVE BODY high pressure die-casting aluminum alloy body
ACTUATOR CONNECTION FLANGE high pressure die-casting aluminum alloy
DISC SHAFT made from carbon steel or AISI 304 stainless steel
VALVE DISC1. Anti-frictional macromolecule coated carbon steel core disc 2. Cast iron 3. AISI 304 stainless steel
SEAL NBR (black) EPDM (white)
WORK TEMPERTURE Max.200 ℃
According to the using requirements and working conditions of butterfly valve, we use the dedicated driver, which are the manual actuator and pneumatic actuator.
|Pneumatic Actuator||Solenoid valves||Solenoid Coil||Mini Switch Box|
