CPD65 Mixing Station Additive Butterfly Valve

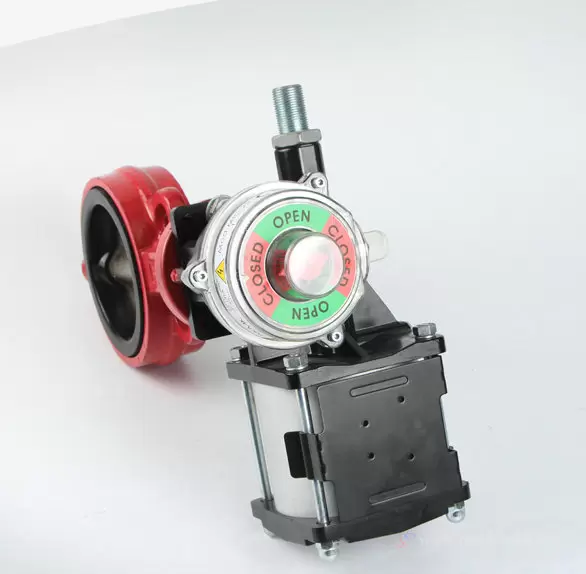

CPD6-65WF Mixing Station Additive Butterfly Valve

CPD pneumatic butterfly valve, also known as additive butterfly valve, is used to open or close admixtures and water pipes.
DN40-65 use CP101 actuators DN80-150 use CP101T actuators

Product Name: CPD6-65WF pneumatic butterfly valve
Valve channel type: two-way clip type
Applicable medium: gas, liquid, oil
Sealing material: rubber
Sealing structure: soft seal
Body material: ductile iron
Spool material: nodular cast iron
Connection type: Clip-on connection
Drive: Pneumatic
Actuator: CP101
Air source pressure: 4-8BAR
Medium pressure: 0-10BAR
Medium temperature: 0-80°C
Parameters Table
