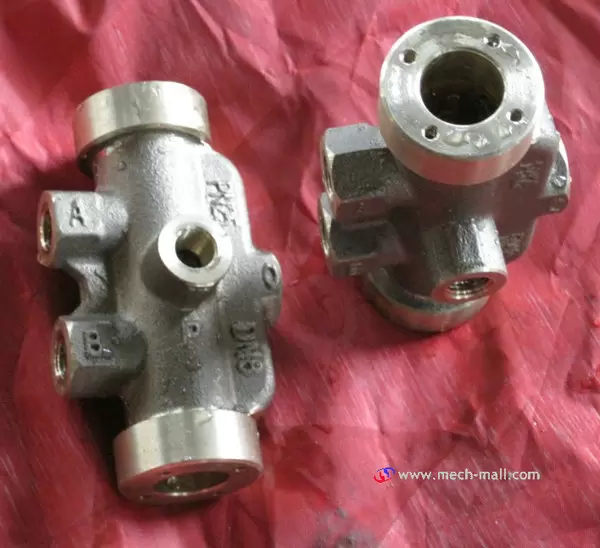

Pneumatic Two-position Four-way Slide Valve

$195.00

-1% New
Nominal diameter: DN15 (or DN8)
Nominal pressure: 2.5MPA
Working medium temperature: 5-60 ℃
Working medium: no obvious corrosive water after filtration
Signal pressure: 0.3-0.35mpa
Allow leakage: 20mL / min
Commutation time: <1s
Structure: A-single gas control; S-double gas control
SKU: ZSC-403R DN15-1-1 Categories: , , , Tags: ,

Pneumatic Two-position Four-way Slide Valve

ZSH pneumatic two position four-way valve is a pneumatic actuator, which according to the process control system to receive program controller or electronic control valve pressure signal,  And switching or emptying the flow of the pipeline transport.it also can accept the manual given signal to achieve remote control operation.

Slide valve

single gas control valve

Weight 3 kg
Suppliers

HIYAMECH, TRI OCEAN

Material

Copper
