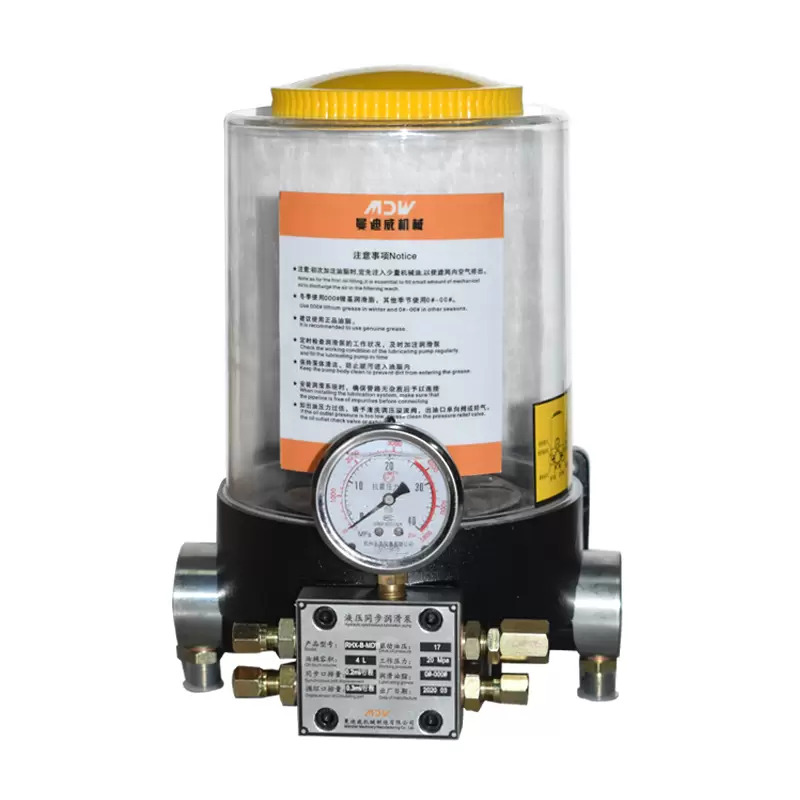

RHX-B Synchronous Grease Pump
RHX-B Hydraulic synchro lubrication pump- outer diameter of outlet pipe 6mm; displacement of circulating outlet 0.3ml per time; displacement of each synchro outlet 0.2ml per time; the grease feeding port at the right side adopts plug type connector; and the driving connector port is downward.
| Model | RHX-B*/*/*** | |||
|---|---|---|---|---|
| Nominal pressure | MPa | 16~19 | ||
| Optimal oil pressure | MPa | 16~19 | ||
| Max. oil pressure | MPa | 25 | ||
| Displacement at the circulating port | ml/cy | 0.2 | 0.3 | 0.4 |
| Displacement at the synchro port | ml/cy | 0.15 | 0.2 | 0.25 |
| Number of circulating port | PCS | 1 | ||
| Number of synchro port | PCS | 2 | ||
| Pressure at safety relief valve | MPa | 20 | ||
| Oil tank volume | L | 4 | ||
| Whorl of the driving oil port | mm | M16X1.5(inner cone 24° ) | ||
| Weight | kg | 12.5 | ||
| Medium | Lithium-based grease | 0#~000# | ||
