SEALS OF THE SHAFTS

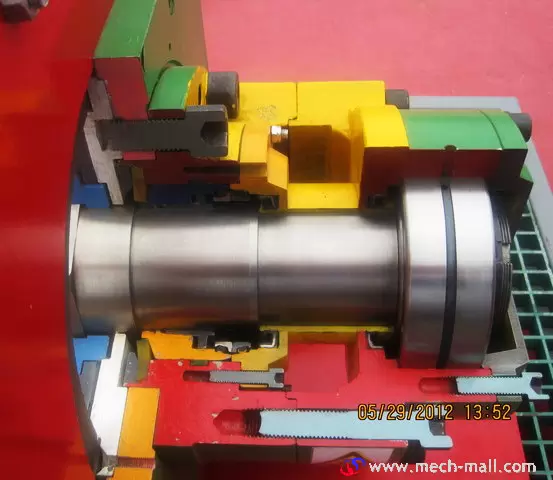

The seal against the concrete leakage from the mixing tank consist of two rectified steel wheels that turns opposing in pressure(for their lubrication see lubrication system).Should the grout percolate, due to a faulty metal seal, the machine can still operate (bearings are separated and far from the seals),but it is recommended to frequently clean the interstice between the bearing and the seal and to substitute at soonest the damaged seals.

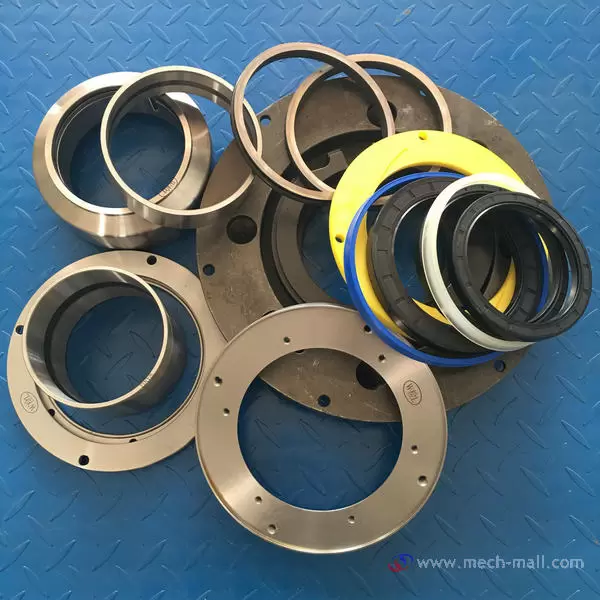

SEALING GROUP ELECTRIC MOTOR SIDE
|
S.NO |
DESCRIPTION | 2m3
QUANTITY |
CODE、SPECIFICATION |
| 1 | SHAFT | 2 | SCAJ-020(E)-161(六) |
| 2 | STEEL BUSH | 2 | SCAJ-400-362-1 |
| 3 | PROTETION RING(B) | 2 | SCAJ-400-244(六) |
| 4 | PROTETION RING (A) | 2 | SCAJ-600-243-1 |
| 5 | PRESS-SLICE | 2 | SCAJ-600-317 |
| 6 | DUSTPROOF RING | 2 | SCAJ-600-318 |

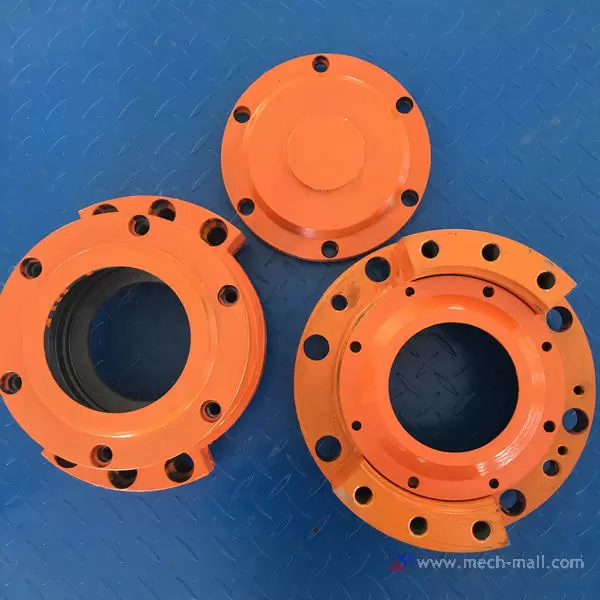

| 7 | SEALING COVER | 2 | SCAJ-600-316-1 |
| 8 | COVER | 2 | SCAJ-600-315 |
| 9 | YELLOW SEAL | 2 | SCAB-600-229 |
| 10 | O RING | 2 | SCAB-400-239 |
| 11 | SEAL MOUNTING RIING | 2 | SCAJ-400-232/233 |
| 12 | BLUE SEAL | 2 | SCAB-600-230 |
| 13 | RETAINING RING | 2 | Ф120 |
| 14 | SUPPORT (1) | 2 | SCAZ-600-156 |
| 15 | STEEL BUSH | 2 | SCAJ-400-362 |
| 16 | SEAL(2) | 2 | SCAB-400-235 |
| 17 | COVER(2) | 2 | SCAZ-600-159 |
| 18 | SUPPORT(2) | 2 | SCAZ-400-157 |
| 19 | SEAL(1) | 2 | SCAB-400-234 |
| 20 | BEARING | 2 | SCAB-400-231 |
| 21 | SEAL(3) | 2 | SCAB-400-236 |
| 22 | COVER(3) | 2 | SCAZ-600-160 |
