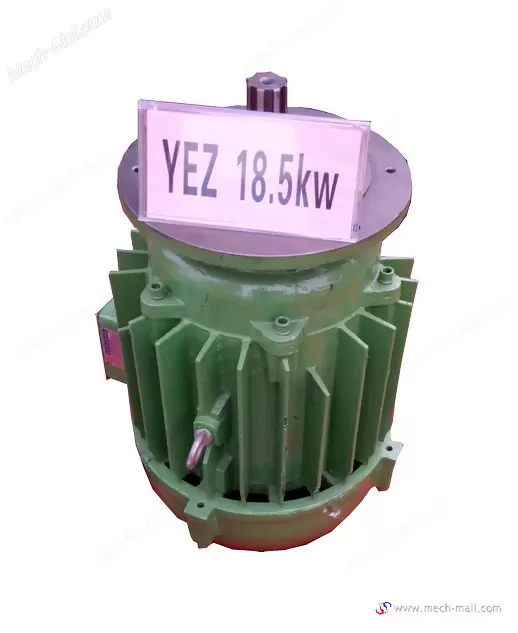

YEZ180M-4 18.5kw Conical Rotor Motor

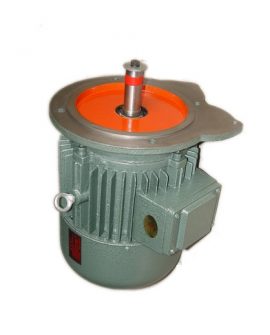

YEZ series conical rotor three-phase asynchronous motor is enclosed cage motor with self-cooling fan and brake rigging (applicable to the construction hoist, concrete mixer and other lifting equipments). It combines the motor and brake device as a whole, has the advantages of big starting torque, strong overload ability, safe and reliable braking, compact structure, light weight, convenient repair regulation ,frequently started free etc.. Connection and installation of any size can be matched with the user.
Rated voltage: 380v/50Hz;（customizable 110v,240v,415v） Rated frequency: 50 Hz/60 Hz
Protection degree: IP44 Insulation class: BInsulation class: B
Coolant temperature: -30 — +40 ºC Mode of connection: Y wiring method.
Working methods of the motor: S4, JC25% Allowable temperature of winding set: 65K.
YEZ Outline Drawing

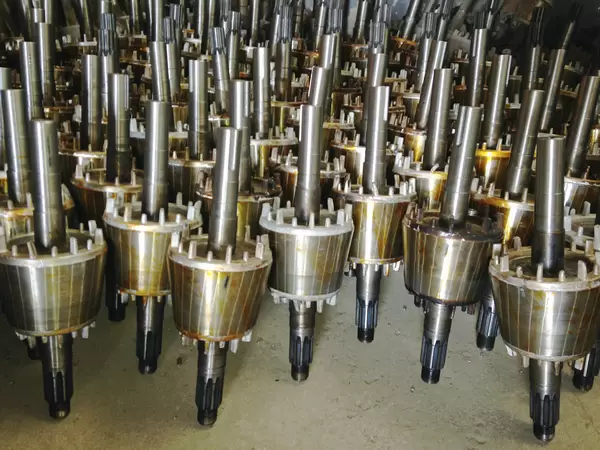

Both of the inner circle of stator and outer ring are conical of YEZ series conical rotor motor. When the motor is energized with current, in addition to generating conical rotor torque, it also produces axial magnetic force to pull shaft backward to compress the spring, then the brake wheel is released , then the motor starts running. When the electricity is cut off, the axial force disappears, the brake wheel produces braking torque in the compression spring force to make the motor stop running immediately.
YEZ series conical rotor three-phase asynchronous motor price list∨
