7.5kw Skip Hopper Concrete Mixer Hoist Motor

YEZ132M-4 7.5kw Skip Hopper Concrete Mixer Hoist Motor

YEZ series conical rotor three-phase asynchronous motor is enclosed cage motor with self-cooling fan and brake rigging (applicable to the construction hoist, concrete mixer and other lifting equipments). It combines the motor and brake device as a whole, has the advantages of big starting torque, strong overload ability, safe and reliable braking, compact structure, light weight, convenient repair regulation ,frequently started free etc.. Connection and installation of any size can be matched with the user.

Rated voltage: 380v/50Hz;（customizable 110v,240v,415v）               Rated frequency: 50 Hz/60 Hz

Protection degree: IP44                                   Insulation class: BInsulation class: B

Coolant temperature: -30 — +40 ºC                Mode of connection: Y wiring method.

Working methods of the motor: S4, JC25%    Allowable temperature of winding set: 65K.

Technical Parameter

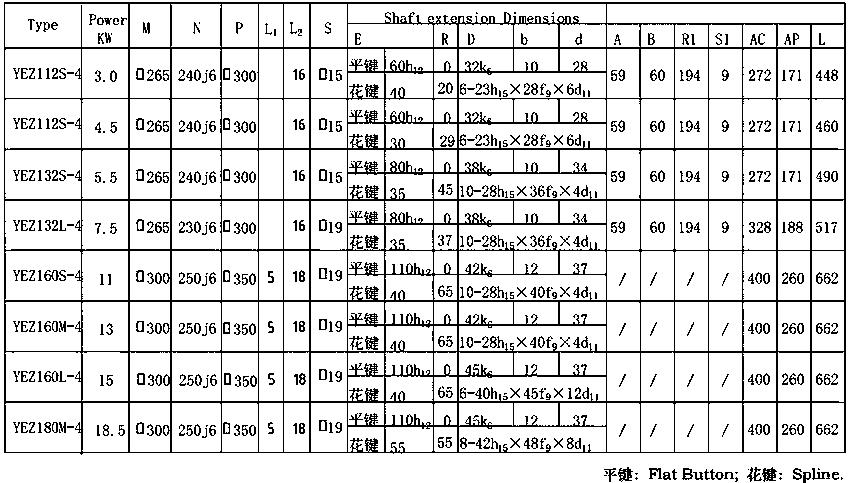

 YEZ Dimensions Drawing

YEZ series conical rotor three-phase asynchronous motor price list∨∨
