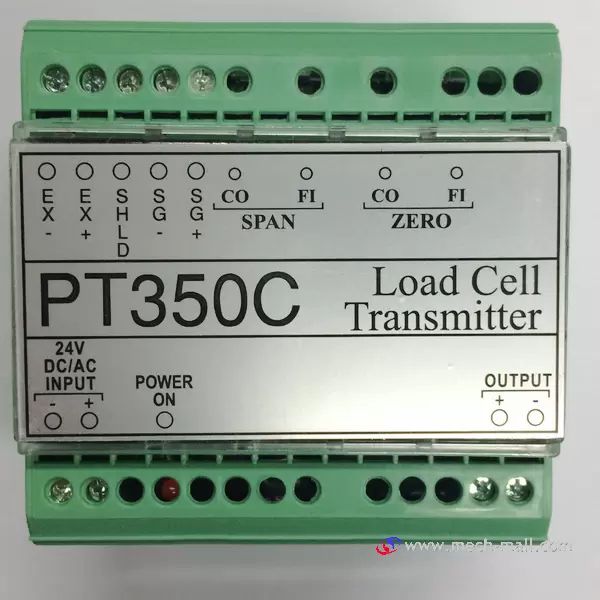

PT350C Load Cell Transmitter
PT350C is designed using the latest SMT technology. It is compact in size. Various output format are available and user selectable. Two kinds of load cell sensitivity input selection are available. It is suitable for commercial and industrial applications ranging from platform weighing to tank, hopper and crane weighing etc.
| Main Supply | 24V DC/AC ±10% | |
| Power Consumption | 5.3VA | |
| Operating Temperature | -5ºC to 60ºC | |
| Relative Humidity | 90%, non-condensing | |
| Load Cell Type | All strain gauge type | |
| Load Cell Supply | 10V DC, 120mA | |
| Input Sensitivity | 1.5m V/V or 3.5m V/V | |
| Output |
FORMAT |
LOAD RESISTANCE |
| 0-5V/1-5V | more than 2KΩ | |
| 0-10V | more than 4KΩ | |
| 0-20mA/4-20mA | less than 550Ω | |
| Non-linearity | Within 0.05% of Full Scale | |
| Dimensions | 75mm(L) x 75mm(W) x 55mm(H) | |
| Net Weight | 150g | |
PT350C: 160.00USD;
PT350D (PVC): 320.00USD;
PT350D (aluminum shell): 333.00USD;
Circuit board MODEL: CM48A: 135.00USD
