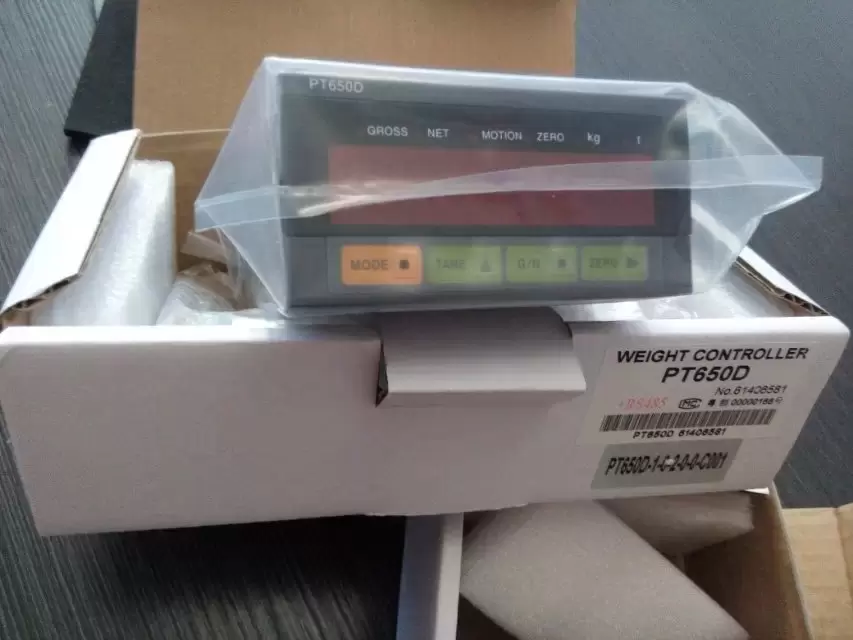

PT650D Weighing Indicator

 PT650D is a kind of general weighing indicator, employing the latest technology for the reliable and best performance quality assurance, cost effective design which includes many functions. PT650D is suitable for all kinds of application such as hopper and weigh platform.

FEATURES

• Apply for all strain gauge load cell;
• Clear and stable 13mm 6 digitals LED display;
• gross weight and net weight can be selected;
• Display step width is selectable of 1, 2, 5, 10, 20 or 50;
• Numeric display “O.L.” when overload;
• Display decimal point is selectable of 4 decimal places;
• Automatic zero tracking;
• Automatically set tare by push button;
• Delta-sigma conversion method;
• Internal resolution is 16,000,000 counts;
• Scale display resolution from 300 to 10,000;
• Conversion rate up to 200 times/sec;
• Software function setting method;
• External on/off switch for function and calibration setting protection;
• Option:
• RS232/RS485 input and output port;
• Hi/Lo comparator output (opto-couple, dielectric strength 80VDC,300mA);
• Parallel BCD output; or Analog output;
• Optional software: single material batching control software.

Mains supply : 110VAC, 220VAC±10%, 50/60Hz
Power consumption : 9 VA
Operating temperature : -5℃ to 50℃(23℉ to 122℉)
Relative Humidity : 90%(non-condensing)
Weight : Approx 0.45 kg. Load cell type: All strain gauge load cell.
