273 Screw Conveyer’s Gear Reducer

273 Screw Conveyer’s Gear Reducer

Screw Conveyor is mainly used for conveying powdery, granular and small piece of material, such as coal, carbon black, soda ash, reclaimed rubber powder, zinc oxide, calcium carbonate and small coal. It is not suitable for conveying perishable, viscous and easy to agglomerate material.
Screw conveyor suitable environment temperature is -20℃-50℃.material temperature should be less than 200℃,dip angle≤20°,conveying length general is less than 40 meters.The longest do not exceed 70 meters.
Main part: Gearbox; Universal joint; Flanges; Spiral blade; Splined hub; Spline shaft; End cap.ect.

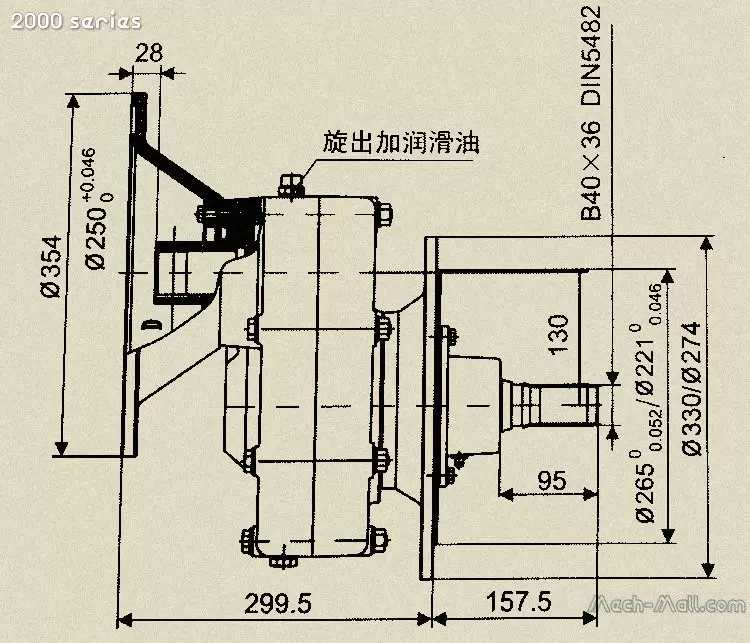

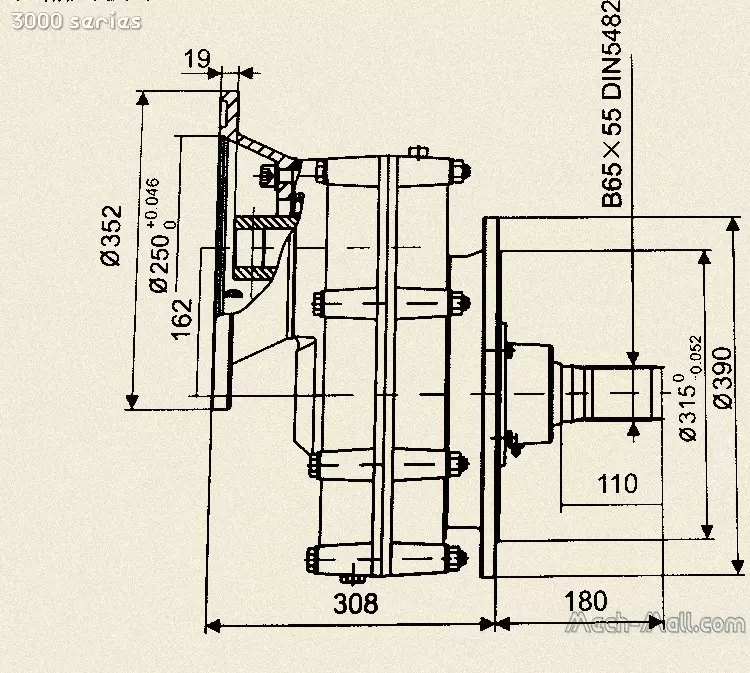

Gearbox (hard teeth surface gear reducer) Technical Data
